-€50.00
CyclingCeramic BB86 41/30mm Ceramic Bottom Bracket
€199.00
€149.00
Ceramic bottom bracket for BB86 frames and 30mm axles. Enhance your bike's smoothness and durability with the CyclingCeramic BB86 41/30mm bottom bracket. Compatible with Rotor 30mm cranksets and Canyon and Scott frames. Includes internal protection tunnel.
4.5/5
CyclingCeramic BB86 41/30mm Ceramic Bottom Bracket
Optimize your bike's performance with the CyclingCeramic BB86 41/30mm ceramic bottom bracket. Designed for BB86 frames using 30mm cranksets, this bottom bracket ensures exceptional smoothness and durability thanks to its high-quality ceramic bearings.
Main Features:
- Compatibility: Designed for BB86 standard frames with 30mm axles. Perfect for Rotor 30mm cranksets such as the Aldhu 3D+, Vegast, Aldhu Carbon, Inpower, 2INpower and Canyon or Scott frames.
- Dimensions: Bottom bracket length: 86mm, External width: 41mm, Internal width: 30mm.
- Material: High-quality ceramic bearings for increased smoothness and maximum durability.
- Protection: Includes an internal protection tunnel starting June 2023.
- Maintenance: Single row of bearings to reduce friction. Requires greasing every 2000 km to maintain optimal performance.
How to Identify a BB86 Frame?
BB86 is commonly used on carbon Canyon and Scott frames. Other brands also use it on several frames in their range. To be sure, measure the width of your frame; it should be 86mm for road frames. However, the internal diameter of 41mm without the bottom bracket is the definitive way to identify a BB86.
How to Identify a Rotor Crankset with a 30mm Axle?
On the post-2017 range, all 30mm cranksets have a easily identifiable black axle. Most crank arms have the 30mm mark on the centerbolt. Finally, all INpower and 2INpower power meter series have a 30mm axle compatible with this bottom bracket.
Why Choose the CyclingCeramic BB86 Ceramic Bottom Bracket?
CyclingCeramic's ceramic bearings are treated to offer exceptional resistance to rust, unlike other products in the same price range. The treatment of the bearing cages ensures remarkable longevity and smoothness, even after thousands of kilometers.
Maintenance Tips:
To ensure optimal performance and extend the life of your bearings, we recommend using the CyclingCeramic cleaner. This product is specifically formulated to protect and maintain your bearings in perfect condition.
Velo-perso.com Opinion: "CyclingCeramic bearings provide extraordinary long-term smoothness because the cages are treated, unlike most competitors in this price range whose cages rust quickly. This bottom bracket has a single row of bearings, which reduces friction to the same level as a BB30 bottom bracket. Due to the limited space for grease, we recommend greasing every 2000 km. Finally, the only cleaning product that will protect your bearings is the CyclingCeramic cleaner, and we invite you to use it for this bottom bracket in particular."

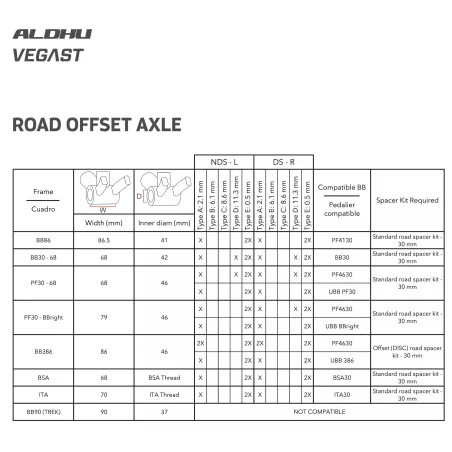

Compatibility Table for CyclingCeramic 41/30 Bottom Bracket
This table details the compatibility of the CyclingCeramic 41/30 bottom bracket with various brands, frames, and cranksets.
Brands / Frames | Shimano (105 R7000/7100, Ultegra R8000/8100, Dura-Ace 9100/9200) |
Rotor Vegast / Aldhu 30mm & Aldhu Carbon | Rotor INpower / 2INpower | SRAM GXP | SRAM DUB |
---|---|---|---|---|---|
Canyon: Aeroad, Ultimate, Endurace | ✘ Not Compatible | ✔ Compatible | ✔ Compatible | ✘ Not Compatible | ✘ Not Compatible |
Scott: Addict, Foil | ✘ Not Compatible | ✔ Compatible | ✔ Compatible | ✘ Not Compatible | ✘ Not Compatible |
Giant: TCR, Defy, Propel | ✘ Not Compatible | ✔ Compatible | ✔ Compatible | ✘ Not Compatible | ✘ Not Compatible |
Lapierre: Xelius, Pulsium | ✘ Not Compatible | ✔ Compatible | ✔ Compatible | ✘ Not Compatible | ✘ Not Compatible |
Bianchi: Oltre, Infinito, Aria | ✘ Not Compatible | ✔ Compatible | ✔ Compatible | ✘ Not Compatible | ✘ Not Compatible |
Cube: Litening, Agree | ✘ Not Compatible | ✔ Compatible | ✔ Compatible | ✘ Not Compatible | ✘ Not Compatible |
Ridley: Fenix, Noah | ✘ Not Compatible | ✔ Compatible | ✔ Compatible | ✘ Not Compatible | ✘ Not Compatible |
BMC: Teammachine, Roadmachine | ✘ Not Compatible | ✔ Compatible | ✔ Compatible | ✘ Not Compatible | ✘ Not Compatible |
Merida: Scultura, Reacto | ✘ Not Compatible | ✔ Compatible | ✔ Compatible | ✘ Not Compatible | ✘ Not Compatible |
If you have any questions about compatibility, feel free to contact our support team for personalized advice.
FAQ - CyclingCeramic BB86 41/30mm Bottom Bracket
Is this bottom bracket compatible with Canyon Aeroad bikes?
Yes, it is compatible with all generations of Canyon Aeroad bikes, including older models with both disc and rim brakes.
Is this bottom bracket compatible with Scott Addict bikes?
Yes, it is compatible with all generations of Scott Addict and Scott Foil bikes, as these frames use the BB86 standard.
Is this bottom bracket compatible with Shimano cranks?
No, this is a PF4130 bottom bracket designed for 30mm axles, while Shimano cranks use a 24mm axle and require a PF4124 bottom bracket.
What does PF4130 mean?
PF stands for press fit, indicating the bearings are pressed into the frame. 41 refers to a 41mm internal frame diameter (BB86 standard), and 30 indicates compatibility with 30mm crank axles.
Does this model exist in steel?

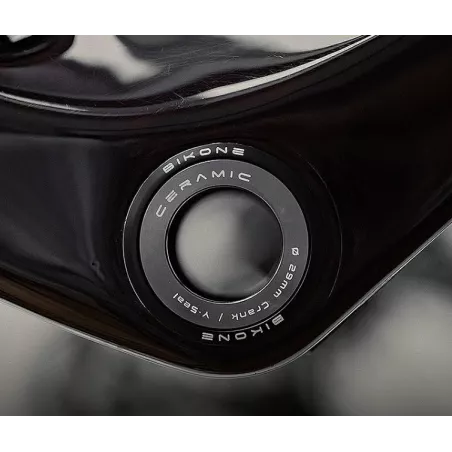

No, CyclingCeramic does not manufacture steel bottom brackets. However, the Bikone 4130 steel model is an excellent alternative and also includes a protective tunnel.
How to Install a PF4130 Bottom Bracket on a BB86 Frame
- Check the current situation:
- If no bottom bracket is installed, proceed directly to cleaning the frame.
- If a Shimano BB86 bottom bracket is installed, use a BB86 extractor (e.g., Park Tool BBT-90.3) to remove it.
- If a PF4130 bottom bracket is installed, use a BB30 extractor (e.g., Park Tool BBT-30.4) to remove it.
- Clean the frame: Thoroughly clean the bottom bracket area to remove dirt and prevent contamination.
- Prepare your tools: Use a bearing press tool, such as the Park Tool HHP-2, for precise installation.
- Position the bottom bracket: Place the PF4130 bottom bracket in the designated area on the BB86 frame.
- Insert the bottom bracket: Gently press the bottom bracket into the frame using your tool to avoid damage.
- Check the installation: Ensure the bottom bracket is properly aligned and securely in place before installing the crankset.
color | Black |
---|---|
Axle | 30mm |
Material | Aluminum |
For Frames: | BB86: Canyon, Scott, BMC, Lapierre ... |
Compatible with the following cranks: | Rotor Aldhu 3d+ Vegast, 3d+, Flow, Inpower, Inpower DM, 2Inpower, 2Inpower DM, 3d30 |
Bearings | Ceramic (grade 3) |
What's in the box : | 2 cups with ceramic bearings, grease |
Storage location (from where it's shipped to you) | France |
Manufacturing location | France |
