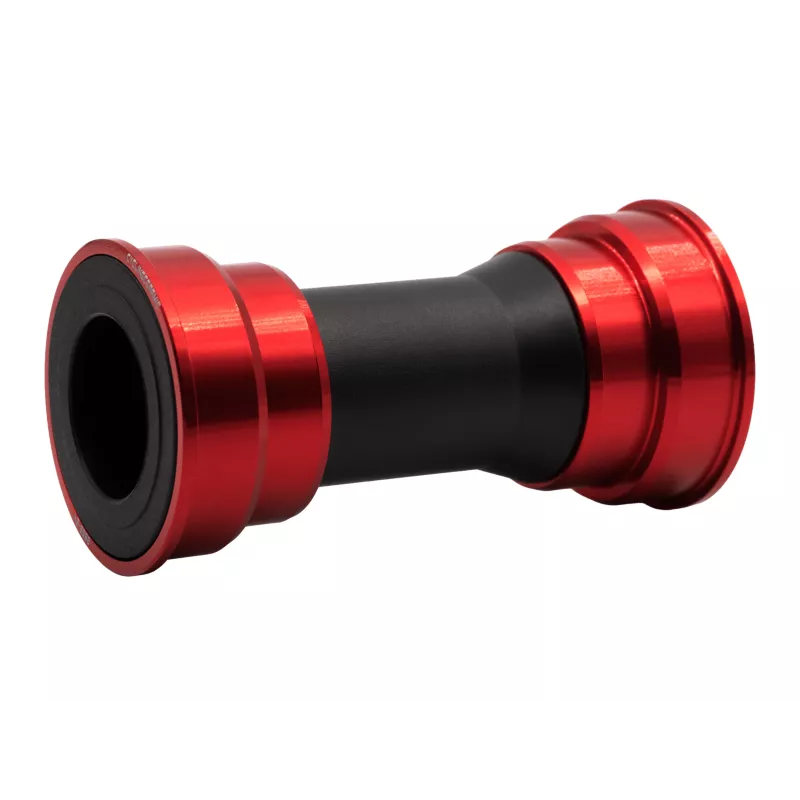

CyclingCeramic BB86 Bottom Bracket 41/24 for 24mm Axle - Black or Red
Reduced price:
€139.99
Tax included
Enhance your BB86 frame with CyclingCeramic’s 41/24 bottom bracket. Designed for 24mm Rotor and Shimano cranksets, available in black and red.
Is your Shimano BB86 bottom bracket no longer running as smoothly as it should? Replace it without changing your crankset.
The CyclingCeramic BB86 41/24 mm directly replaces the original PressFit bottom bracket on a BB86 frame with a 24 mm spindle. You get CNC-machined aluminium cups, grade 3 ceramic bearings, improved sealing and a serviceable design that helps keep the system spinning freely over time.
BB86 / PF86.5
41 mm frame bore
24 mm spindle
Shimano 105 / Ultegra / Dura-Ace
Rotor 24 mm
89 g verified
Made in France
Choose the correct version straight away
Shimano 24 mm
105, Ultegra or Dura-Ace 10, 11 or 12-speed + BB86 frame: this is the correct model.
Rotor 24 mm
Aldhu or Vegast with a 24 mm spindle + BB86 frame: compatible.
Rotor / other 30 mm spindle
Do not choose this model.
See the BB86 41/30
SRAM DUB 28.99 mm
You need the BB86 DUB version.
See the BB86 DUB
Not sure which frame standard or spindle diameter you have?
Find the right bottom bracket with the Velo-Perso.com Bottom Bracket Finder →
Compare BB86 Shimano 24 mm bottom brackets in our guide →
Why upgrade from a Shimano PressFit bottom bracket to CyclingCeramic?
| Model | Weight | Material | Serviceability | Sealing | Smoothness | Bearing balls | Grease |
|---|---|---|---|---|---|---|---|
| Shimano PressFit | approx. 70 g | Plastic / composite | ★☆☆☆☆ | ★★★☆☆ | ★★☆☆☆ | Steel | Thicker protective grease, designed primarily for short-term protection rather than minimum drag. |
| CyclingCeramic BB86 24 mm | 89 g | Machined anodised aluminium Made in France |
★★★★★ | ★★★★★ | ★★★★★ | Grade 3 ceramic | Low-friction grease developed for ceramic bearings, balancing efficiency, protection and durability. |
Lower friction
CyclingCeramic is designed for very low bearing drag. Velo-Perso.com uses an indicative figure of 1 to 3 W at 90 rpm compared with a more conventional steel-bearing setup.
Longer service life when maintained
The bearings can be cleaned and re-greased. Depending on riding conditions and servicing, service life can reach 2 to 5 times that of standard steel bearings.
Stiffer support and better protection
Machined aluminium cups hold the bearings precisely, while the internal sleeve protects the centre of the bottom bracket from dirt and internal frame cables.
Velo-Perso.com's opinion
“If your frame is BB86 and you are keeping a Shimano 24 mm crankset, this is one of the simplest upgrades for improving smoothness and long-term durability. We especially like the free-running bearings, aluminium cups, sealing and the fact that the bottom bracket can be serviced instead of simply discarded once contamination appears. On a high-end bike equipped with 105, Ultegra or Dura-Ace, it is a coherent upgrade without changing the entire drivetrain.”
BB86 + 24 mm spindle: check these two dimensions before ordering
A road BB86 frame is approximately 86.5 mm wide at the bottom bracket shell with a 41 mm internal bore. The cups are pressed directly into the frame.
All road Shimano Hollowtech II 105, Ultegra and Dura-Ace cranksets in 10, 11 and 12-speed use a 24 mm spindle. Rotor Aldhu and Vegast cranksets are available with different spindle diameters, so make sure yours is the 24 mm version.
This bottom bracket directly replaces Shimano SM-BB92-41B and SM-BB72-41B when your frame is BB86 and your crankset uses a 24 mm spindle.
Compatibility by frame brand
BB86 is commonly found on bikes from Canyon, Scott, Giant, Lapierre, Bianchi, Cube, Ridley, BMC, Merida, Look, Wilier, Origine and many other brands. Standards may change between models and model years, so always verify your exact bike.
| Frame brands / models frequently found with BB86 | Shimano 24 mm 105 / Ultegra / Dura-Ace |
Rotor 24 mm Vegast / Aldhu |
Rotor 30 mm | Rotor INpower / 2INpower 30 mm | SRAM GXP 24/22 | SRAM DUB 28.99 |
|---|---|---|---|---|---|---|
| Canyon Aeroad • Ultimate • Endurace* | ✓ This model | ✓ This model | ✕ 41/30 | ✕ 41/30 | GXP version | ✕ DUB |
| Scott Addict • Foil* | ✓ This model | ✓ This model | ✕ 41/30 | ✕ 41/30 | GXP version | ✕ DUB |
| Giant TCR • Defy • Propel* | ✓ This model | ✓ This model | ✕ 41/30 | ✕ 41/30 | GXP version | ✕ DUB |
| Lapierre Xelius • Pulsium* | ✓ This model | ✓ This model | ✕ 41/30 | ✕ 41/30 | GXP version | ✕ DUB |
| Bianchi Oltre • Infinito • Aria* | ✓ This model | ✓ This model | ✕ 41/30 | ✕ 41/30 | GXP version | ✕ DUB |
| Cube Litening • Agree* | ✓ This model | ✓ This model | ✕ 41/30 | ✕ 41/30 | GXP version | ✕ DUB |
| Ridley Fenix • Noah* | ✓ This model | ✓ This model | ✕ 41/30 | ✕ 41/30 | GXP version | ✕ DUB |
| BMC Teammachine • Roadmachine* | ✓ This model | ✓ This model | ✕ 41/30 | ✕ 41/30 | GXP version | ✕ DUB |
| Merida Scultura • Reacto* | ✓ This model | ✓ This model | ✕ 41/30 | ✕ 41/30 | GXP version | ✕ DUB |
* Brands sometimes change bottom bracket standards between generations of the same bike. If in doubt, use the Velo-Perso.com finder rather than ordering from the frame name alone.
Not using a 24 mm spindle? Go straight to the correct BB86 version
Maintain the bearings to keep them running freely
The bottom bracket is supplied with CyclingCeramic grease. To preserve low friction and protect the races, inspect the bearings during major drivetrain services and re-grease them once the existing grease becomes contaminated.
CyclingCeramic blue grease
The low-friction grease used for CyclingCeramic bottom brackets and bearings. Velo-Perso.com recommends regular inspection / re-greasing, typically around every 2,000 km depending on conditions.
Add it for maintenance →
CyclingCeramic assembly paste
Apply it to the frame interfaces when installing the PressFit bottom bracket.
For a clean BB86 installation →
Optimising a Shimano 12-speed drivetrain? Reduce friction elsewhere too
Once the bottom bracket is upgraded, the next logical areas are the rear derailleur pulleys. Ceramic pulleys are the simple option if you want to keep the original Shimano cage; the Race 14/19 oversized cage goes further with larger pulleys and a carbon cage.
CyclingCeramic Shimano 12-speed pulleys
For Shimano 105 R7150, Ultegra R8150 and Dura-Ace R9250. Keep the original Shimano derailleur cage.
Simple drivetrain upgrade →
CyclingCeramic Race 14/19 cage
For Ultegra R8150 and Dura-Ace R9250: 14/19 oversized pulleys, ceramic bearings, carbon cage and 4 tension settings.
Full derailleur upgrade →
Two videos to see the bottom bracket and how it works
CyclingCeramic BB86 41/24 specifications
| Frame standard | BB86 / PF86.5 PressFit |
|---|---|
| Frame internal diameter | 41 mm |
| Road shell width | Approx. 86.5 mm |
| Spindle diameter | 24 mm |
| Compatible cranksets | Shimano 105, Ultegra, Dura-Ace 10/11/12-speed; Rotor 24 mm |
| Replaces, among others | Shimano SM-BB92-41B and SM-BB72-41B on compatible frames |
| Cups | CNC-machined anodised aluminium |
| Bearings | Grade 3 ceramic |
| Protection | Internal protection sleeve fitted on the current generation |
| Weight | 89 g verified by Velo-Perso.com |
| Colours | Black or red depending on availability |
| Included | Bottom bracket with bearings, grease syringe, instructions |
| Made in | France |
| Stocked before shipping | France |
BB86 Shimano 24 mm FAQ
Is this bottom bracket compatible with Shimano 105 R7100, Ultegra R8100 or Dura-Ace R9200?
Yes. These cranksets use a 24 mm spindle. You only need to confirm that your frame is BB86 / PF86.5 with a 41 mm internal diameter.
Are BB86 and PF86.5 the same standard?
For road bikes, both names refer to the same family: approximately 86.5 mm shell width, 41 mm internal diameter and PressFit cups.
Is my Rotor Aldhu or Vegast compatible?
Yes if it uses a 24 mm spindle. Rotor 30 mm versions require the CyclingCeramic BB86 41/30.
Can I use this with a Rotor INpower or 2INpower?
Not if the crankset uses Rotor's 30 mm spindle. Choose the BB86 41/30 version instead.
Is it compatible with SRAM DUB?
No. SRAM DUB uses a 28.99 mm spindle, so you need the CyclingCeramic BB86 DUB 41/29.
Is it compatible with SRAM GXP?
Not directly. GXP uses an asymmetric 24/22 mm spindle and requires a BB86 version designed for GXP.
Why is it heavier than a Shimano PressFit bottom bracket?
Shimano uses very light plastic/composite cups. CyclingCeramic uses machined aluminium cups and an internal protection sleeve; verified weight is 89 g.
Do ceramic bearings need maintenance?
Yes. Periodic cleaning and re-greasing help preserve low friction and bearing life. The interval depends on rain, washing, dust and mileage.
How to install the CyclingCeramic BB86 bottom bracket
BB86 is a PressFit system: the cups must enter the frame perfectly straight and without side load. If you are not used to pressing cups into a carbon frame, have the job done by a workshop.
Tools required
BB86 cup remover such as Park Tool BBT-90.3, suitable hammer or mallet, bearing press such as Park Tool HHP-3, clean cloth, mild degreaser and assembly paste.
1
Remove the old bottom bracket
After removing the crankset, insert the remover behind the first cup. Tap progressively to drive it out, then repeat on the opposite side. Never strike the frame or bearing directly.
2
Clean the BB86 interfaces
Remove old grease and dirt. Inspect the frame surfaces and make sure no internal cable interferes with the protection sleeve.
3
Apply a thin layer of assembly paste
Apply a small amount of assembly paste to the frame interfaces and the outer base of the cups. There is no need to use excessive product.
4
Press the cups in straight
Position both cups carefully and use the press to drive them in gradually until fully seated. If a cup starts to go in at an angle, stop and realign it before continuing.
5
Check rotation before reinstalling the crankset
Make sure the bottom bracket is centred, the internal sleeve does not contact any cable and the bearings rotate freely. Refit the Shimano or Rotor 24 mm crankset according to the manufacturer's instructions.
Need to verify the standard before removing anything?
Complete BB86 Shimano 41/24 guide →
Velo-Perso.com Bottom Bracket Finder →
| Weight | 89g |
|---|---|
| Axle | 24mm |
| Material | Aluminum |
| For Frames: | BB86 |
| Bearings | Ceramic (grade 3) |
| What's in the box : | BB, grease |
| Storage location (from where it's shipped to you) | France |
| Manufacturing location | France |
