-20%
PowerSet T47 Shimano Ceramic UAE Edition - Ceramic T47 Bottom Bracket 24mm
Reduced price:
€319.20
Tax included
PowerSet T47 Shimano Ceramic UAE Edition bottom bracket. Compatible with T47 threaded frames (85.5-86.5mm & T47A 77mm) and Shimano or Rotor 24mm cranks. A high-end product for exceptional performance. Compatible with new Colnago Y1RS and Shimano cranksets. This product was used by UAE team up to 2024 for Colnago V4RS. In 2025-2026 they ride Colnago Y1RS and have updated for the Bikone BSA aero UAE that is pretty similar in terms of quality and innovation.

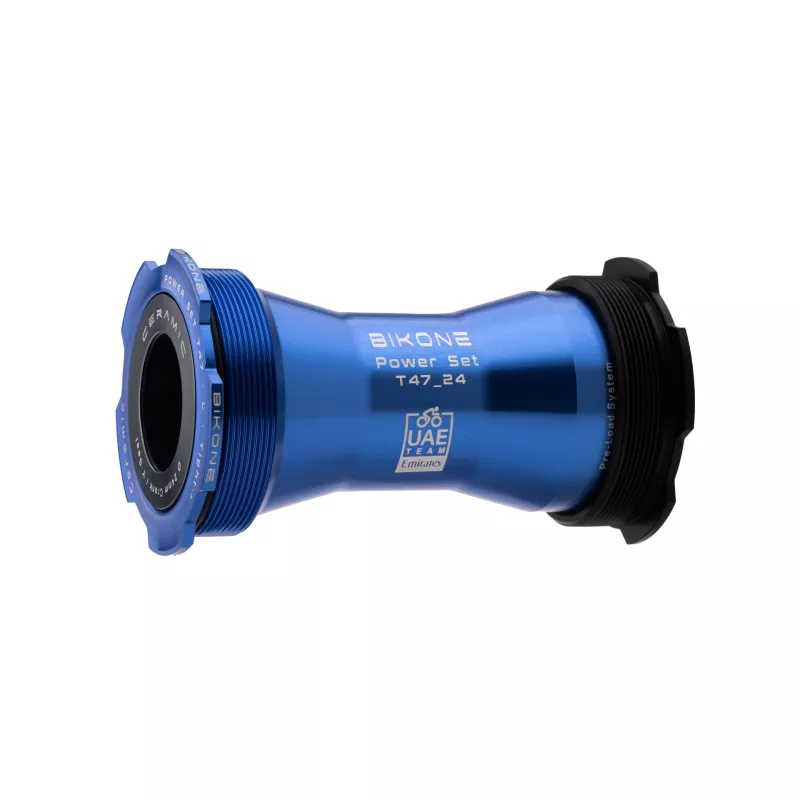

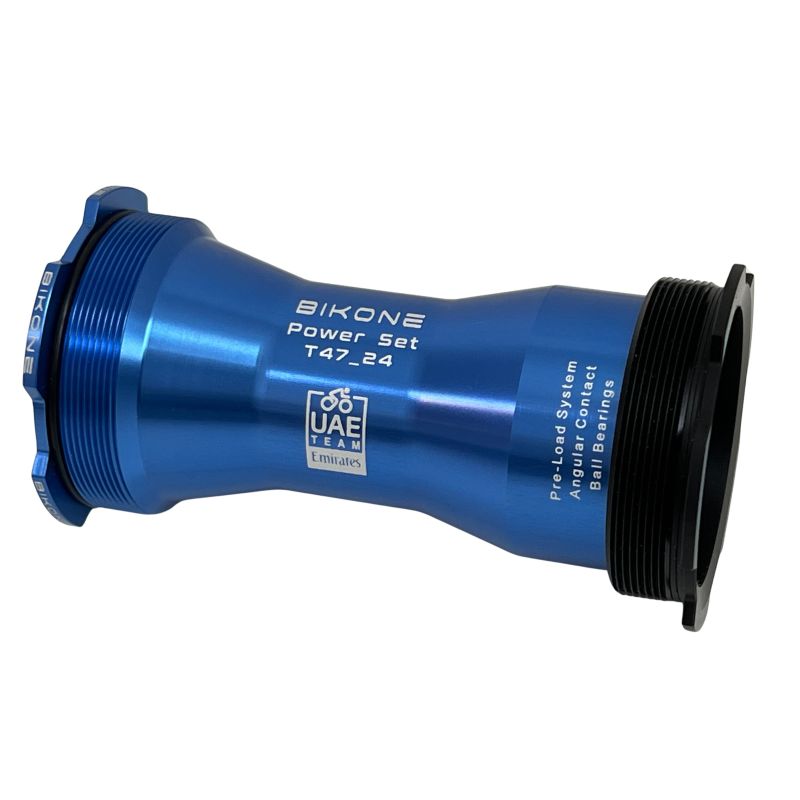

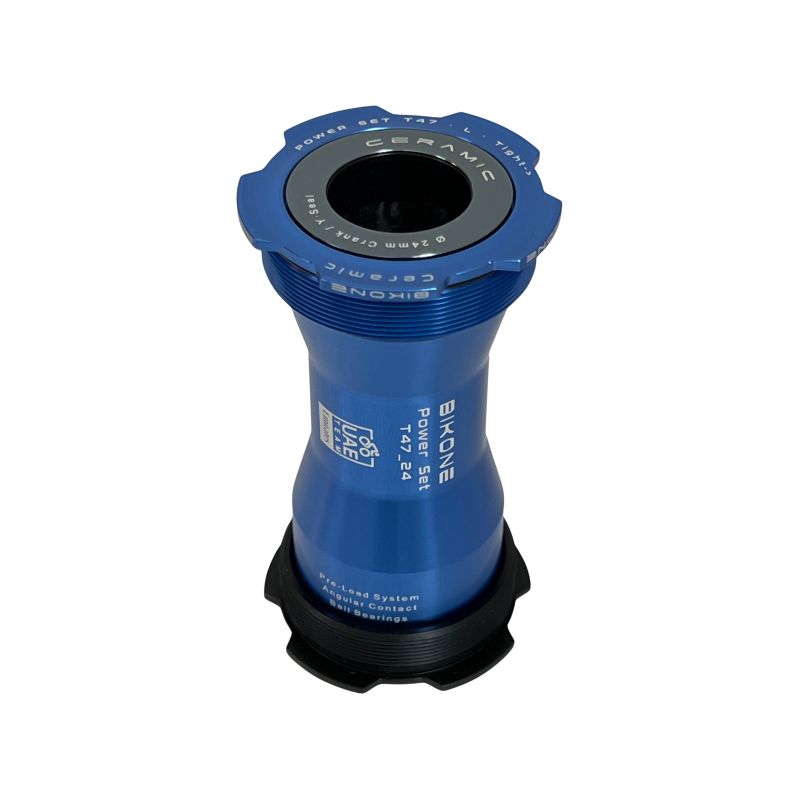

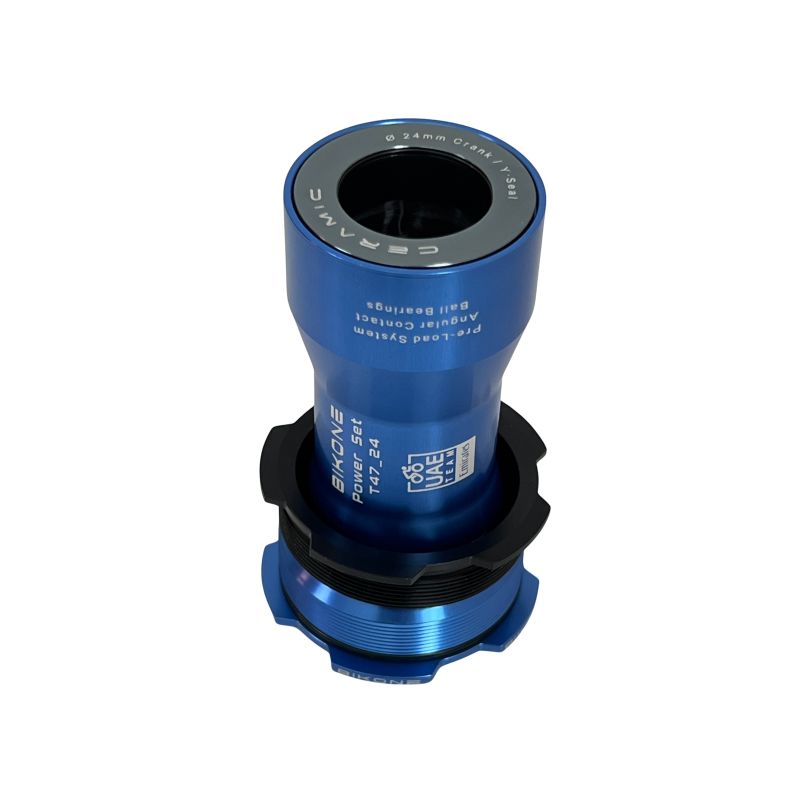

PowerSet T47 Shimano Ceramic UAE Edition
The PowerSet T47 & T47A Shimano Ceramic UAE Edition bottom bracket is designed for T47 threaded frames (77mm, 85.5 & 86.5 mm) and Shimano or Rotor 24mm cranksets. This special blue edition stands out with its angular contact bearings, providing optimal load distribution regardless of the angle or torque applied to the cranks.
Main Features
- Bearings: Angular Contact Ball Bearings – Hybrid Ceramic – ABEC5 / P5 – 2RS
- Cups: 7075 T6 Aluminum with matte anodized finish, CNC machined
- Sealing: Fully sealed system with up to five O-rings
- Compatibility: T47 threaded frames (85.5 to 86.5mm), Shimano and Rotor 24mm cranksets
Key Technologies
PowerSet®
Our patented PowerSet® system ensures equal load distribution across all bearing balls, reducing friction and increasing durability. This guarantees smooth pedaling, even under high loads.
Angular Contact Bearings
Angular contact bearings support both axial and radial loads. Unlike standard bearings where only 3 or 4 balls make contact, our system engages all balls, distributing force over a larger surface to reduce wear.
FullySealed
The fully sealed system, with up to five O-rings, protects against dust, water, mud, and moisture, significantly extending the bottom bracket's lifespan.
Axial Seals
Two additional axial seals protect bearings from dust and moisture, ensuring long-lasting performance.
7075-T6 Aluminum
Made from aerospace-grade aluminum with a scratch-resistant matte anodized finish, ensuring exceptional durability and sleek aesthetics.
T6 Heat Treatment
T6 heat treatment enhances hardness and grain structure, ensuring optimal performance throughout the product's lifetime.
High Precision CNC Machining
All products are CNC machined to achieve exceptional precision and minimal tolerances, critical for DualCupTech™ alignment.
Assembly Specifications
- Frame Diameter: Threaded T47
- Frame Width: 77mm & 85.5 – 86.5mm
- Crank Diameter: Ø24mm (Shimano Road)
Recommended Tools

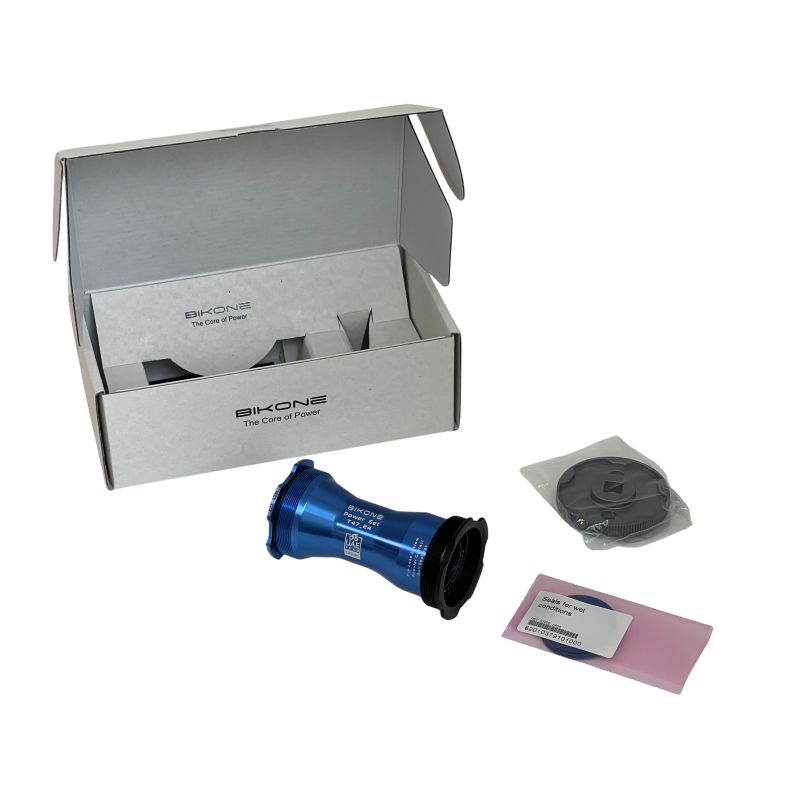

- Bikone tool included
- Torque wrench recommended, tighten to 30 Nm
Velo-Perso.com’s Review
"The T47 is a modern standard gaining popularity on prestigious frames like Trek. This UAE ceramic edition is the ultimate choice for a T47 internal setup (85.5 to 86.5mm) or T47 setup with Shimano or Rotor 24mm cranksets. If your budget allows, this bottom bracket offers unmatched smoothness, durability, and excellent sealing."
