-€35.10
T4724 BB internal 86,5mm Cyclingceramic
Reduced price:
€149.90
Tax included

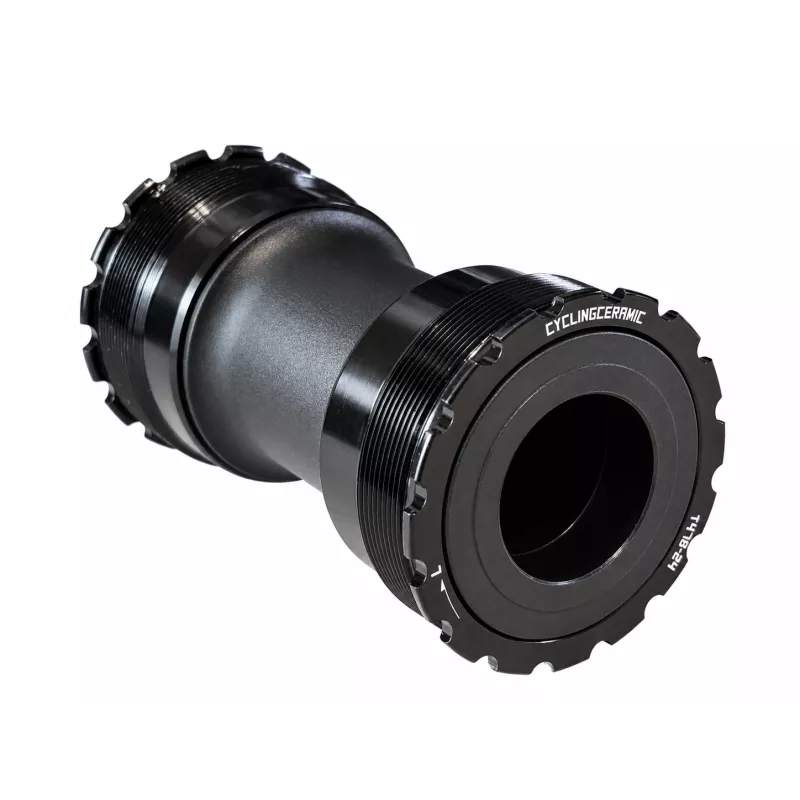

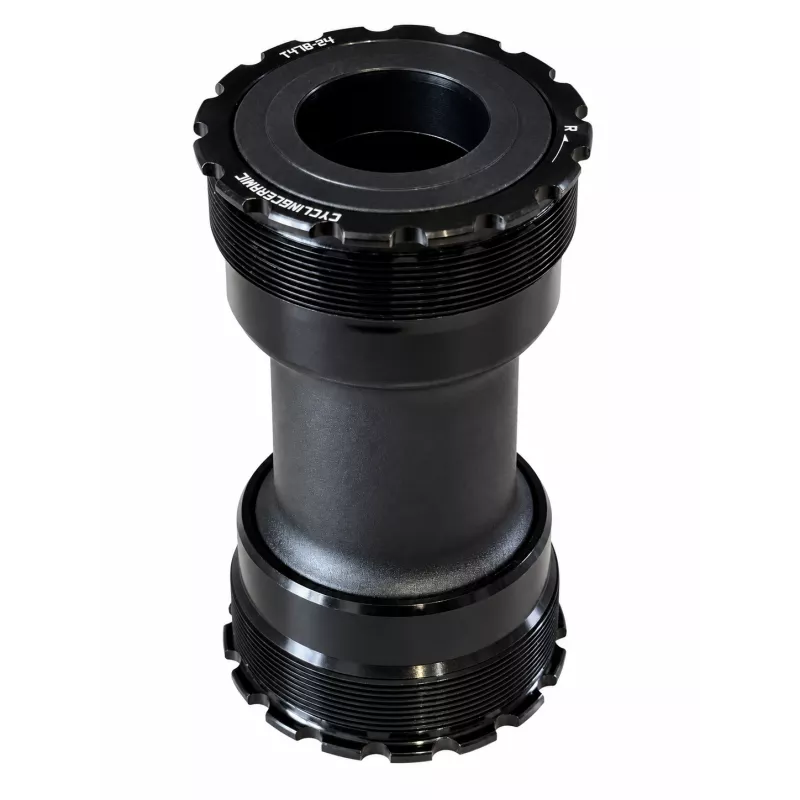

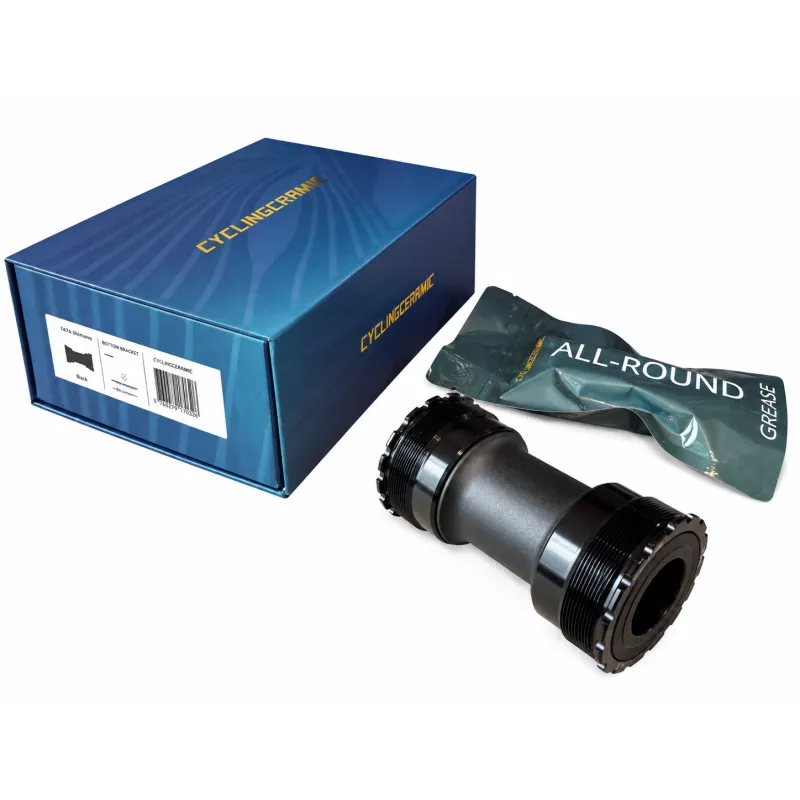

This ceramic bottom bracket fits T47 frames with an 86.5 mm shell width. It is designed for 24 mm spindles, such as Shimano or Rotor Aldhu24/Vegast24 cranksets.
Please note: since 2026, this product has been sold without the installation tool. The tool is available here .
CyclingCeramic · T47 IN Cup · Shimano / Rotor 24 mm
T47 internal 86.5 mm bottom bracket: threaded precision meets ceramic smoothness
Developed for T47 frames with internal bearing cups and Shimano cranksets with a 24 mm spindle, this CyclingCeramic bottom bracket combines precision-machined aluminium cups with premium ceramic bearings. A high-end replacement for your original bottom bracket or a carefully considered upgrade for a performance road or gravel build.
Frame standard
Internal T47
86.5 mm · Trek 85.5 mm*
Crank spindle
24 mm
Shimano Hollowtech II · Rotor 24
Construction
Ceramic · CNC
Hand-assembled and tested in France
Why choose the CyclingCeramic T47/24?
T47 is a large-diameter threaded bottom bracket standard. Unlike PressFit systems, the cups screw into the frame, helping with servicing and replacement when installed correctly. On this IN Cup version, the bearings sit within the width of the frame's shell. Do not confuse it with the external-cup T47 versions typically used on 68 mm-wide frames.
- Precision ceramic bearings: designed for low crankset friction. Actual performance depends on load, grease, seals and maintenance.
- CNC-machined aluminium cups: carefully engineered for a precise fit with a compatible T47 threaded shell.
- Protection against contamination: suitable sealing helps keep out water, dust and other contaminants in everyday use.
- Assembled and tested in France: CyclingCeramic states that each bottom bracket is hand-assembled and checked individually.
Our take
A sensible premium choice for a T47 internal frame paired with an excellent Shimano or compatible Rotor 24 mm crankset. Rather than promising free watts, the real appeal lies in the combination of high-quality bearings, carefully machined cups, sealing and the serviceability of a threaded interface.
Compatibility: check both your frame and crankset
Two things must match: your frame's bottom bracket shell and your crank spindle. A shell width of 86.5 mm alone does not indicate a T47 fit. A BB86 frame has the same nominal width but uses a completely different PressFit interface.
| Check | This bottom bracket |
|---|---|
| Frame interface | Threaded T47, internal-bearing version (IN Cup) |
| Shell width | 86.5 mm; CyclingCeramic also specifies compatibility with 85.5 mm Trek T47* |
| Shimano cranksets | 24 mm Hollowtech II: Dura-Ace, Ultegra, 105 and GRX (compatible versions) |
| Rotor cranksets | ALDHU24 and VEGAST24, subject to the correct 24 mm spindle and frame setup |
| Not compatible | SRAM DUB 28.99 mm, 30 mm spindles; BB86 PressFit, external 68 mm T47 and asymmetric T47A shells |
| Claimed weight | Approximately 110 g (manufacturer specification) |
* CyclingCeramic confirms fitment with 85.5 mm Trek T47 shells. Always check the exact specification and model year of your frame and crankset.
Unsure about fit? Use our bottom bracket compatibility finder to match your bike with its actual crank spindle.
Installation: a dedicated tool, sold separately
The T47 cups screw into the frame. Correct installation requires clean, properly prepared threads, a tool matching the cup interface, and the frame and crank manufacturer's torque and spacer requirements. If in doubt, have the work carried out by an experienced mechanic.
Recommended accessory · 2026 version
A thoughtfully engineered dual-sided socket
The premium CyclingCeramic universal bottom bracket tool features two 16-notch interfaces: one for compatible internal T47 cups and the other for T45 / Colnago ThreadFit systems. Its magnetic centre guide helps keep the tool seated during installation and removal.
Please note: from 2026 onwards, the installation tool is sold separately from this bottom bracket. It is designed for compatible CyclingCeramic cups produced from 1 January 2026; check the cup interface if you have an older version.
View the CyclingCeramic installation tool →Frequently asked questions
Will this T47/24 bottom bracket fit a Trek 85.5 mm shell?
Yes. CyclingCeramic explicitly lists 85.5 mm Trek T47 shells as compatible with this 86.5 mm internal T47 version. However, the brand name alone does not confirm fit: verify your frame's exact specification and model year.
Does it fit an 86.5 mm BB86 frame?
No. BB86 is a PressFit standard, whereas this bottom bracket requires T47 threads. The nominal shell width may be the same, but the two standards are not interchangeable.
Can I keep my Shimano Ultegra, Dura-Ace, 105 or GRX crankset?
Yes, for compatible 24 mm Hollowtech II versions, provided your crankset and frame configuration match and the installation requirements are met. Rotor ALDHU24 and VEGAST24 may also be used with the correct setup.
What if I use SRAM DUB or a 30 mm Rotor crankset?
This 24 mm version is not suitable. Choose a bottom bracket designed for your crank spindle and exact frame interface. Browse our T47 ceramic bottom bracket selection.
Do ceramic bearings deliver a measurable watt saving?
High-quality, correctly lubricated bearings can reduce friction losses, but results depend on seals, load, lubrication and maintenance, as well as the reference bearings used for comparison. No fixed watt gain can be guaranteed for every rider or bike.
The right bottom bracket, first time
Have a compatible 85.5/86.5 mm internal T47 frame and a 24 mm crank spindle? The CyclingCeramic T47/24 is a great option for a premium build. Not entirely sure which shell your bike uses? Check fitment before ordering.
| color | black |
|---|---|
| Axle | 24mm |
| For Frames: | T47 86,5mm |
| Bearings | Ceramic (grade 3) |
| Storage location (from where it's shipped to you) | France |
| Manufacturing location | France |
