Bikone DCTech ITA Ceramic Bottom Bracket Shimano 24 mm

Bikone DCTech ITA Ceramic Bottom Bracket Shimano 24 mm

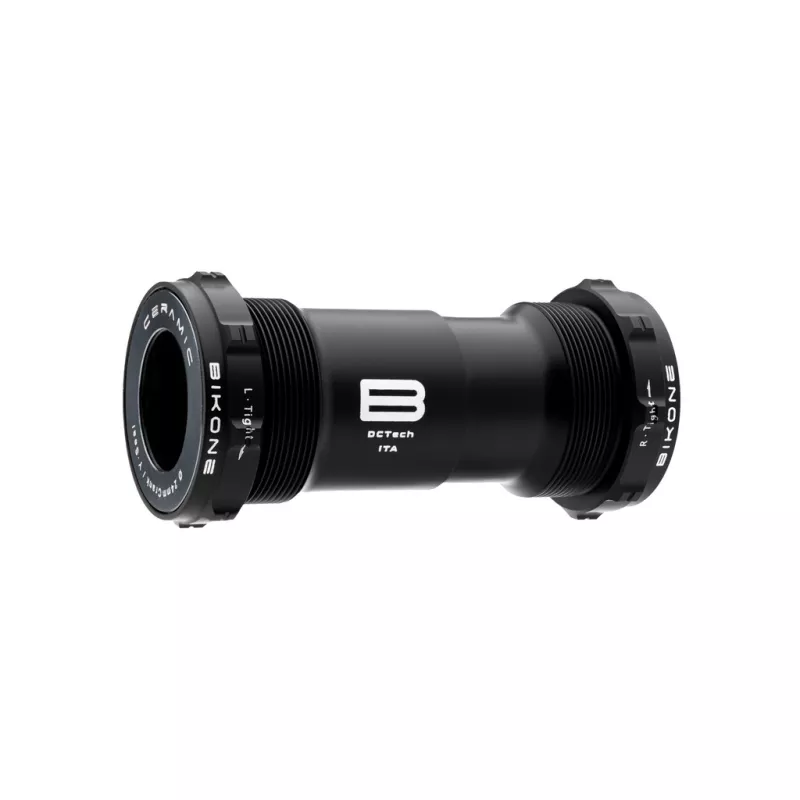

The Bikone DCTech ITA Ceramic is a premium threaded bottom bracket for frames using the Italian standard. It combines ABEC5 / P5 – 2RS hybrid ceramic bearings, 7075-T6 aluminium cups and Bikone's Dual Cup Technology (DC Tech) to deliver very smooth rotation, accurate bearing alignment and strong protection against water and contamination.

This model is made for Italian-threaded ITA road frames and 24 mm spindle cranksets, especially Shimano Hollowtech II (105, Ultegra and Dura-Ace) and compatible 24 mm road cranks. It is also suitable for Pinarello frames using an Italian bottom bracket standard, provided the exact frame specification is checked first.

Why choose the Bikone DCTech ITA Ceramic?

• Hybrid ceramic bearings: designed to reduce friction while providing strong dimensional stability and durability.
• ABEC5 / P5 precision: tight tolerances for smooth, consistent rotation.
• Dual Cup Technology: both cups work together to promote correct bearing alignment and reduce unwanted movement.
• 7075-T6 aluminium cups: high-strength, lightweight and durable material with black anodised finish.
• Enhanced sealing: 2RS bearings, axial seals and protected exposed surfaces.
• Serviceable design: Bikone replacement bearings and service parts are available.

Compatibility and technical specifications

Installation

• Bikone tightening torque: 30–35 Nm.
• Left / non-drive side: assembly grease.
• Right / drive side: low-strength threadlocker such as Loctite 222, as specified by Bikone.
• Tool: Shimano-type BSA/ITA tool, 44 mm outer diameter / 42.7 mm inner diameter, 16 notches (e.g. Park Tool BBT-69.3, Shimano TL-FC32 or equivalent).
• Do not use carbon assembly paste or brake cleaner on the bottom bracket.
• Do not clean the bottom bracket directly with a pressure washer.

Velo-Perso tip: ITA is sometimes confused with BSA. Shell diameter, shell width and threading are different. Make sure your frame uses a 70 mm shell with 36 x 24 TPI Italian threading before ordering.

Service parts and warranty

• Replacement bearing: Bikone 25376 Ceramic
• Bikone warranty: stated lifetime warranty on the external cups and 3 years on bearings/wear-related auxiliary components, subject to the manufacturer's terms.

In short

A strong premium choice for road bikes using a 70 mm ITA shell: precise ceramic bearings, rigid construction, effective sealing and replaceable service parts. Final compatibility always depends on the frame standard, crank spindle diameter and any spacers required by the crank manufacturer.
