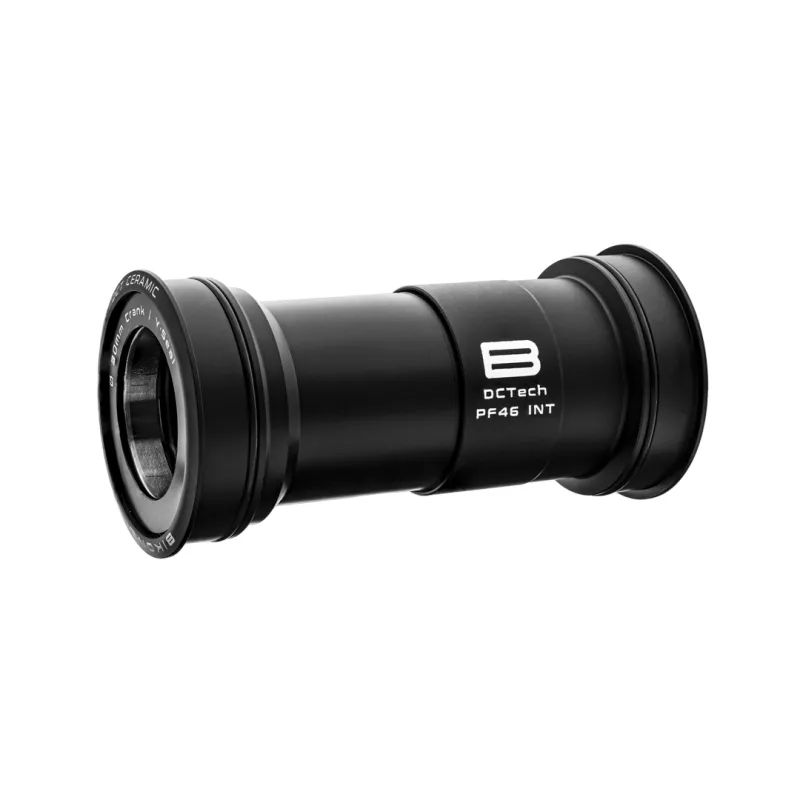

PF386 EVO - Steel Bikone 30mm- DCTech bottom bracket
Reduced price:
€69.99
Tax included
Bikone DCTech steel bottom bracket for BB386 EVO / PF46 frames and cranksets with a 30 mm spindle, including compatible Rotor ALDHU, ALDHU Carbon, VEGAST, INpower and 2INpower configurations.
Dual Cup Technology, ABEC5 / P5 – 2RS steel bearings, 6061-T6 aluminium cups and full sealing. Frame shell diameter: 46 mm. Manufacturer weight: 110 g.
A particularly strong choice for fitting a Rotor 30 mm crankset to a BB386 EVO frame, combining precise construction and reliable steel bearings without immediately moving to a ceramic system.
BIKONE · DCTECH · PF46 / BB386 EVO
A 30 mm steel bottom bracket engineered for BB386 EVO frames
The Bikone DCTech PF46 30 mm combines a precise PressFit architecture, ABEC5 / P5 – 2RS steel bearings and 6061-T6 aluminium cups. It is a reliable, high-quality solution for fitting a 30 mm spindle crankset to a compatible BB386 EVO / PF46 frame.
46 mm frame shell
30 mm spindle
ABEC5 / P5 steel
110 g manufacturer
Why choose the Bikone DCTech BB386 EVO 30 mm?
A good bottom bracket is about more than the material used for the bearing balls. Bearing alignment, cup stiffness, manufacturing tolerances and sealing all matter for smooth operation and service life. These are exactly the areas targeted by Bikone's DCTech design.
Dual Cup Technology
The two aluminium cups work as a central assembly designed to improve bearing alignment and reduce unwanted movement.
ABEC5 / P5 steel bearings
Precision steel bearings with a 2RS construction and protection suited to road, gravel or MTB use when matched to the correct frame and crankset.
6061-T6 aluminium cups
Corrosion-resistant aluminium with T6 treatment, selected by Bikone to provide stiffness, precision and durability.
Fully sealed design
Axial seals and protected surfaces help isolate the bearings from water, dust and contamination.
BB386 EVO, PF46 and 30 mm: three dimensions to understand
The 30 mm figure describes the crank spindle, not the frame shell diameter. The Bikone DCT PF46_30 IN is pressed into a 46 mm frame shell and accepts a 30 mm crank spindle.
A road BB386 EVO shell is approximately 86.5 mm wide. Bikone specifies this internal PF46 architecture more broadly for shell widths from 68 to 92 mm, so the exact frame standard, discipline and required spacers should always be checked before installation.
30 mm compatibility
A natural match for Rotor cranksets
On a BB386 EVO frame, this bottom bracket is particularly relevant for Rotor cranksets using a 30 mm spindle: ALDHU Carbon, 30 mm ALDHU configurations, 30 mm VEGAST, INpower and 2INpower depending on the selected version.
Explore Rotor ALDHU Carbon cranksets · Explore the Rotor ALDHU range
Technical specifications
PressFit installation advice
A PressFit bottom bracket should be pressed squarely into a clean frame shell using the correct installation tool. Creaking does not always come from the bearings: the interface between the cup and frame can also be responsible.
To secure this interface, see the Bikone Assembly Paste developed for PressFit bottom brackets.
FAQ — Bikone BB386 EVO 30 mm steel bottom bracket
Is this bottom bracket compatible with a Rotor ALDHU Carbon?
Yes, provided your frame uses a compatible BB386 EVO / PF46 shell. Rotor ALDHU Carbon uses a 30 mm spindle.
Can I fit a 30 mm Rotor ALDHU or VEGAST to a BB386 EVO frame?
Yes, with the correct axle and required spacers. This bottom bracket provides the interface between the frame's 46 mm shell and the crankset's 30 mm spindle.
Are BB386 EVO and BB30 the same standard?
No. A BB386 EVO frame uses an approximately 46 mm internal shell diameter, while a BB30 frame shell is different. The “30 mm” on this page refers to the crank spindle.
Is it compatible with SRAM DUB?
No. SRAM DUB uses an approximately 28.99 / 29 mm spindle. Choose the dedicated Bikone PF46 / BB386 EVO DUB 29 mm version instead.
Is it compatible with Shimano 24 mm cranksets?
No. This reference is designed for 30 mm spindles. Shimano cranksets require the PF46 / BB386 EVO version designed around a 24 mm spindle.
Should I choose steel or ceramic?
Steel is the best-value choice for a reliable, high-quality build. The ceramic version is more relevant to a premium build where exceptionally smooth bearing operation is the priority.
Not sure about your frame?
Check the standard before ordering
The frame determines the outer standard; the crankset determines the inner diameter. Our bottom bracket finder combines both pieces of information.
Find my compatible bottom bracket →| color | black |
|---|---|
| Axle | 30mm |
| Bearings | Steel |
