Cover Shimano for Alugear chainrings
Reduced price:
€64.90
Tax included
CNC-machined AERO covers for Shimano 11 & 12-speed cranksets — R8000, R7100, R8100, R8100P, R9200, R9200P.
Compatible with ALUGEAR 1x & 2x chainrings.
Available in black, red or blue anodized finish.
Delivered with M8 bolts and spacers.
ALUGEAR AERO Cover – Shimano R8000 / R7100 / R8100 / R8100P / R9200 / R9200P
The ALUGEAR AERO cover provides a clean, aerodynamic interface with ALUGEAR chainrings on Shimano 4-arm cranksets (BCD 110 mm asymmetric), neatly hiding the crank/chainring junction. Compatible with both 1x and 2x ALUGEAR chainrings.
Available colours: black, red, blue anodized

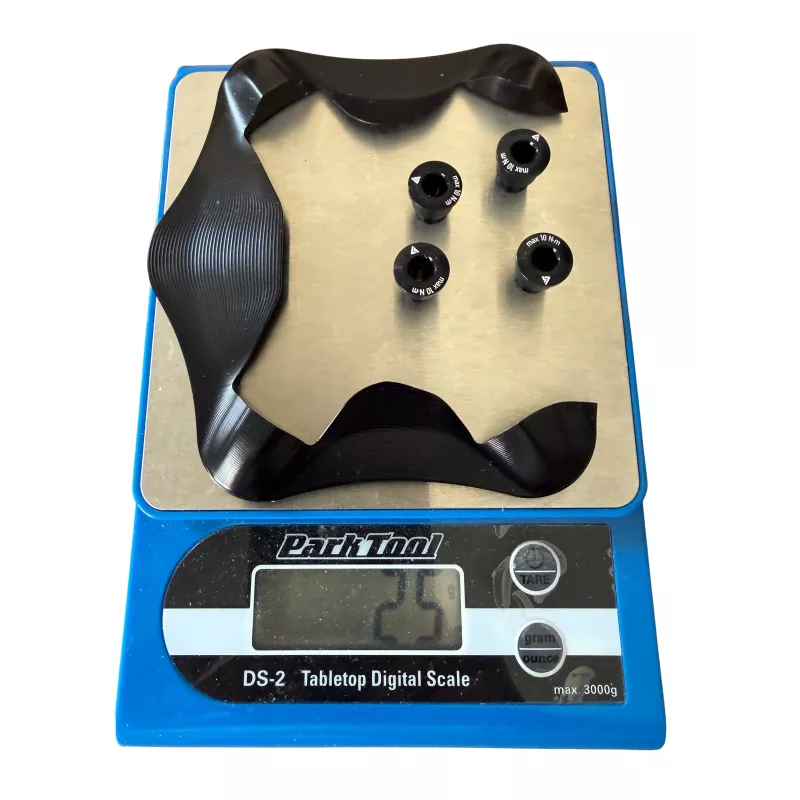

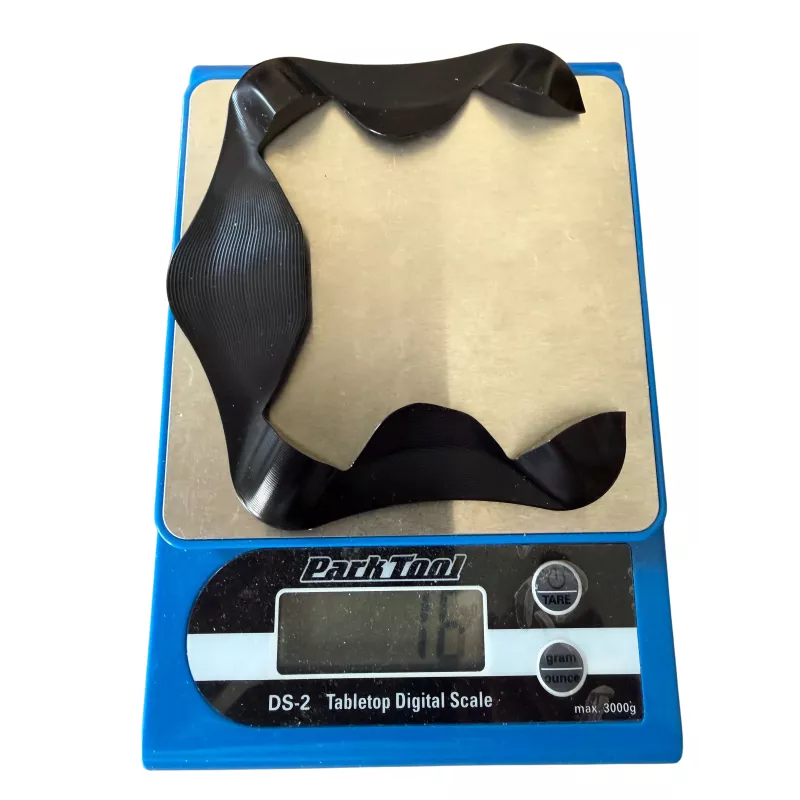

Indicative weight: cover 17 g + bolts 8 g
Indicative weight: cover 17 g + bolts 8 g
Compatibility matrix
| Generation | Shimano crank reference | Correct ALUGEAR cover | Notes |
|---|---|---|---|
| 11-speed | Ultegra R8000 / R8020 / R8050 / R8070 | R8000 | Not compatible with an R8000 crank that has a factory Shimano power meter. |
| 12-speed | 105 R7100 | R7100 | 1x and 2x with ALUGEAR 110x4 chainrings. |
| 12-speed | Ultegra R8100 | R8100 | Choose R8100P if your crank is R8100-P (integrated power meter). |
| 12-speed – Power Meter | Ultegra R8100-P | R8100P | Specific to Shimano’s factory PM crank. |
| 12-speed | Dura-Ace R9200 | R9200 | Choose R9200P if your crank is R9200-P (integrated power meter). |
| 12-speed – Power Meter | Dura-Ace R9200-P | R9200P | Specific to Shimano’s factory PM crank. |
Technical reminder: Shimano 110 mm asymmetric BCD, 4-arm – designed for matching ALUGEAR chainrings (1x/2x). Use the supplied ALUGEAR hardware only.
Specifications
- Material: 7075-T6 CNC-machined aluminum
- Mount: 4 x M8 bolts (11.5 mm) + spacers included
- Finish: black / red / blue anodized
- Max torque: 10 Nm (5 mm hex)
Setup – 1x and 2x
1x – Install the cover on the outer face of the ALUGEAR chainring. Pre-align, then tighten cross-pattern to 8–10 Nm.
2x – Fit the cover per ALUGEAR’s 2x scheme, between the big ring and crank arm to hide the junction. Observe the provided washer/spacer order, then tighten cross-pattern to 8–10 Nm.
What’s included
- 1 x AERO cover
- 4 x M8 bolts (11.5 mm) + spacers
Velo-Perso note
Match the cover to your crank generation precisely. For factory power-meter models (R8100-P / R9200-P), select the corresponding P cover to ensure perfect fit and finish.
